GDCU34B ADAS Domain Control Unit

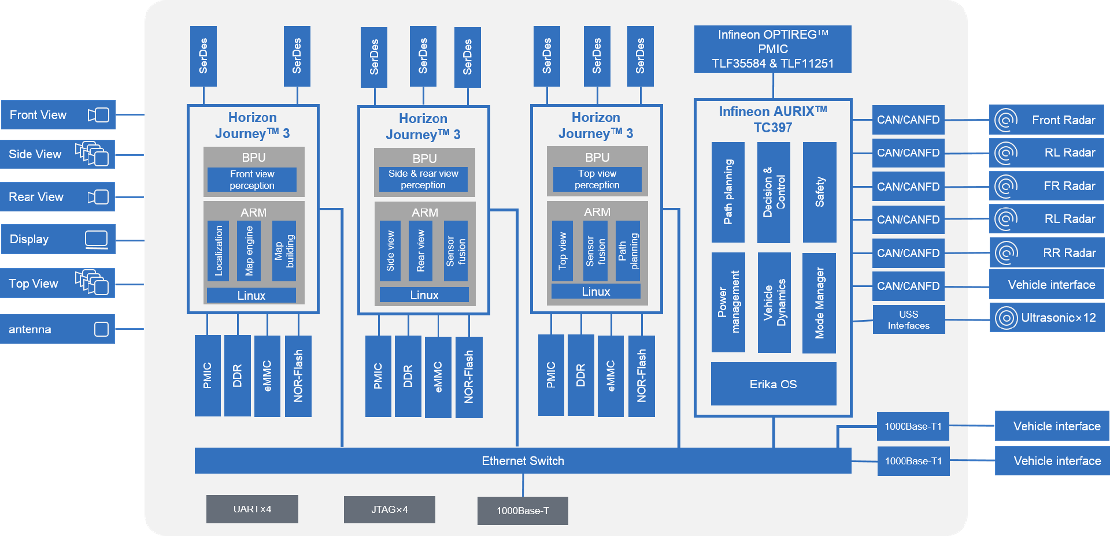

The GDCU34B ADAS Domain Control Unit integrates the ASIL D multi-core safety processor Infineon AURIX™ series TC397 and three Horizon Journey™ 3 (J3) with a variety of interfaces for connection to cameras, millimetre wave radar, ultrasonic sensors and in-vehicle control units, and provides a complete open source software stack that allows you to quickly develop safety related autonomous driving applications such as automatic on and off ramps, all speed control, auto lane change, automatic overtaking, automatic parking and other safety related autonomous driving assistance system applications.

Scalable and Flexible Configurable High-performance
AI Computing Unit

MCU
Infineon AURIX™ TC397，6×32-bit TriCore @300MHz
SoC
3× Horizon Journey ™ 3
Horizon Journey ™ 3 ：

  • 4 ×Arm® Cortex®-A53 @1.2GHz

  • Dual BPU AI engines , Equivalent computing power≥5TOPS

Memory
3 x 4GB LPDDR4
Storage
3 x 64GB eMMC
3 x 64MB NOR Flash
Dimension（L×W×H）
310mm×179mm×43.8mm
Operating Temperature
-40℃～85℃
Operating Voltage
DC 9V～16V
Communication Interface
6 × CAN / CANFD， 1 of which support remote wake-up
12 × USS
2 × 1000Base-T1
1 × 100Base-T1
Debug Interface
1 × 1000Base-T
2 × USB3.0 (J3)
1 × JTAG (TC397XP)
3 × UART (J3)
1 × UART (TC397XP)
Video Input
10 × GMSL2
Video Output
4 Chn Fakra GMSL2
Camera
1 × 8MP @30fps，FOV 120°
9 × 2MP @30fps ，FOV 100°
Outlet Method
Single side cable output
IP Code
IP5X

Technical Documentation

  • GDCU34B 产品介绍
    GDCU34B 产品介绍
  • GDCU34B Product Introduction
    GDCU34B Product Introduction
  • GDCU34B 技术规格书
    GDCU34B 技术规格书
  • GDCU34B Datasheet
    GDCU34B Datasheet
  • GDCU34B Hardware Design Diagram
    GDCU34B Hardware Design Diagram
  • GDCU34B Hardware Design Schematics
    GDCU34B Hardware Design Schematics
  • GDCU34B 硬件用户手册
    GDCU34B 硬件用户手册
  • GDCU34B Hardware REF TOP&Bottom
    GDCU34B Hardware REF TOP&Bottom
  • GDCU34B 关键物料清单
    GDCU34B 关键物料清单
  • GDCU34B Software User Manual
    GDCU34B Software User Manual
  • GDCU34B Software User Guide
    GDCU34B Software User Guide
  • GDCU34B Camera Demo User Manual
    GDCU34B Camera Demo User Manual
  • GDCU34B Camera Demo GUI
    GDCU34B Camera Demo GUI
