GDCU34A ADAS Domain Control Unit

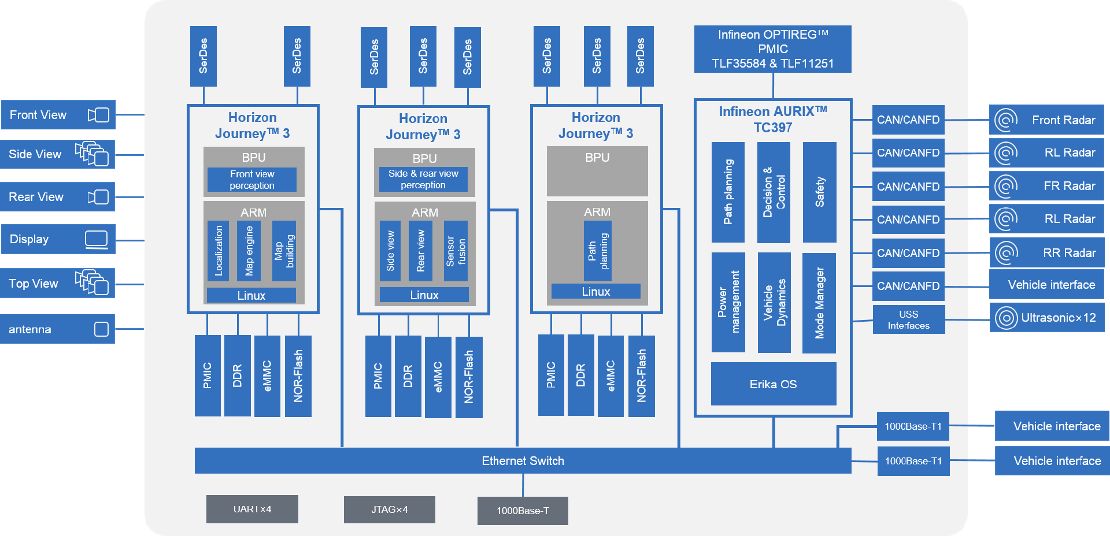

The GDCU34A ADAS Domain Control Unit integrates the ASIL D multi-core safety processor Infineon AURIX™ series TC397 and three Horizon Journey™ 3(J3) with a variety of interfaces for connecting cameras, millimetre wave radar, ultrasonic sensors and in-vehicle control units, and provides a complete open source software stack that allows you to quickly develop safety related autonomous driving applications such as automatic on and off ramps, all speed control, automatic lane change, automatic overtaking and other driving related autonomous driving assistance system applications.

Flexible Configuration of Domain Control Computing Units

MCU
Infineon AURIX™ TC397，6×32-bit TriCore @300MHz
SoC
3× Horizon Journey ™ 3
Horizon Journey ™ 3 ：

  • 4 ×Arm® Cortex®-A53 @1.2GHz

  • Dual BPU AI engines, Equivalent computing power≥5TOPS

Memory
3 x 4GB LPDDR4
Storage
3 x 64GB eMMC
3 x 64MB NOR Flash
Dimension (L x W x H)
290mm x 169mm x 41.8mm
Operating Temperature
-40℃～85℃
Operating Voltage
DC 9V～16V
Communication Interface
6 × CAN / CANFD (1 of which support remote wake-up)
 2 × 1000Base-T1
Debug Interface
1 × 1000Base-T
2 × USB3.0 (J3)
1 × JTAG (TC397XP)
3 × UART (J3)
1 × UART (TC397XP)
Video Input
6 × GMSL2
Video Output
1 Chn GMSL 2
Camera
1 × 8MP @30fps，FOV 120°
5 × 2MP @30fps，FOV 100°
Outlet Method
Single side cable output
IP Code
IP5X
