GSP2A Service-Oriented Gateway Control Unit

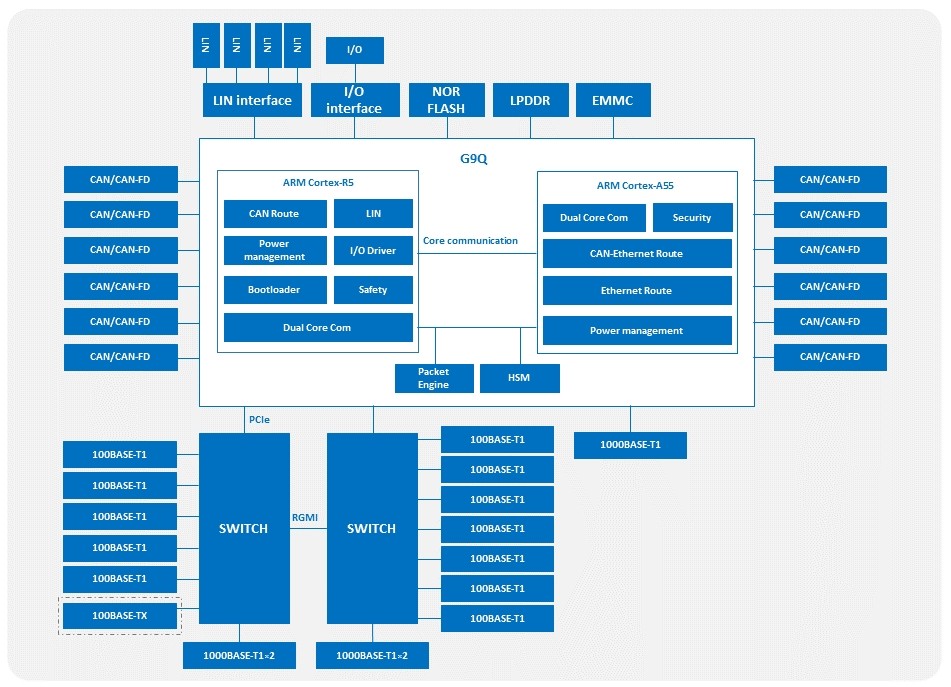

GSP2A Service-oriented Gateway is equipped with multi-core Cortex high-performance processor and automotive-grade Ethernet switch chip, which shall fully meet the current real-time network and safety network needs in-vehicle. Meanwhile it keeps various vehicle bus communication interfaces in reserve, to facilitate the user for accelerating gateway controller extended HW solution development. GSP2A Service-oriented Gateway offers the open Demo software, which helps to quickly deployment vehicle network communication service.

Full Automotive Grade Devices

SoC

G9Q
1×Arm^® Cortex^® -R5 @800MHz + 4×Arm® Cortex^®-A55 @1.4GHz

Storage

16GB

Dimension (L x W x H)

242mm x 132.5mm x 36.5mm

Operating Temperature

-40℃~85℃

Operating Voltage

DC 9V～16V

Communication Interface

12 × CAN/CAN-FD
4 × LIN
12 × 100Base-T1（1 × 100Base-TX）
5 × 1000Base-T1
8 × Digital input（2 × PWM input， 6 × IO input ）
2 × Analog input
2 × Digital output

IP Code

IP50
