GHP1A Hybrid Gateway Control Unit

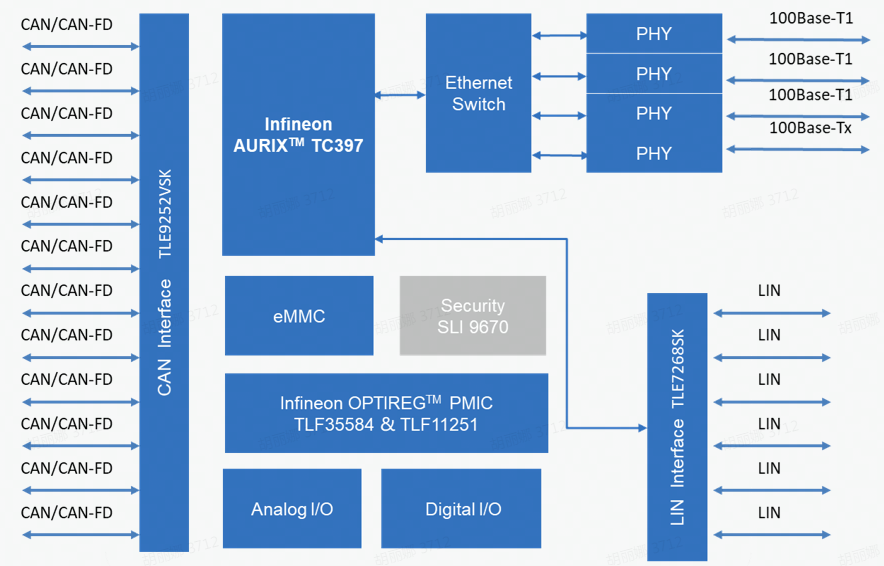

GHP1A Hybrid Gateway is equipped with ASIL D Level Infineon AURIX™ TC397 multi-core security processor and automotive-grade Ethernet switch chip. Meanwhile it keeps various vehicle bus communication interfaces in reserve, to facilitate the user for accelerating gateway controller extended HW solution development. GHP1A Hybrid Gateway Controller offers the open Demo software, which helps to quickly deployment vehicle network communication service.

Full Automotive Grade Devices

MCU
Infineon AURIX™ TC397，6×32-bit TriCore @300MHz
Storage
8~32GB eMMC
Dimension (L x W x H)
203mm x 189mm x 37mm
Operating Temperature
-40℃～85℃
Operating Voltage
DC 9V～16V
Communication Interface
12 × CAN/CAN-FD
6 × LIN
3 × 100Base-T1
1 × 100Base-Tx
2 × Analog Input
3 × Digital Input
IP Code
IP52

Technical Documentation

  • GHP1A 产品介绍
    GHP1A 产品介绍
  • GHP1A Product Introduction
    GHP1A Product Introduction
  • GHP1A 技术规格书
    GHP1A 技术规格书
  • GHP1A Datasheet
    GHP1A Datasheet
  • GHP1A Hardware Design Diagram
    GHP1A Hardware Design Diagram
  • GHP1A Hardware Design Schematics
    GHP1A Hardware Design Schematics
  • GHP1A 硬件用户手册
    GHP1A 硬件用户手册
  • GHP1A Hardware User Manual
    GHP1A Hardware User Manual
  • GHP1A Hardware REF Top&Bottom
    GHP1A Hardware REF Top&Bottom
  • GHP1A 软件用户手册
    GHP1A 软件用户手册
  • GHP1A 软件用户指南
    GHP1A 软件用户指南
  • PIE SW TC397 GHP1A
    PIE SW TC397 GHP1A
