GSC2J31A Smart Cockpit Control Unit

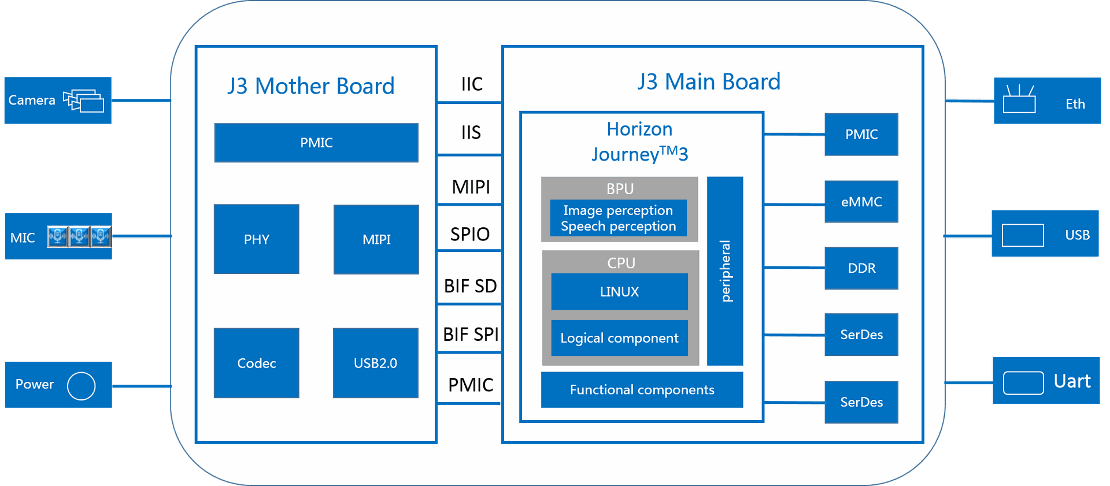

The GSC2J31A Smart Cockpit Control Unit uses a high performance vehicle grade AI chip - Horizon Journey™ 3 , which supports 6 channel cameras and 4 channel MIC access. The Gigabit Ethernet interface can transfer perceptual data to the APK display on the Android side of the vehicle.The system solution provides a complete open source software stack to support user experience of combined video and voice solutions and development of multi-mode interaction solutions.

Smart Cockpit Control Unit

SoC

Horizon Journey ™ 3

4 ×Arm ® Cortex ® -A53 @1.2GHz
Dual BPU AI engines, equivalent Computing Power ≥ 5TOPS

Memory

4GB LPDDR4

Storage

8GB eMMC

Dimension (L x W x H)

170mm x 101.6mm x 47.5mm

Operating Temperature

-40℃～85℃

Operating Voltage

DC 9V～16V

Communication Interface

1 × USB 2.0
1 × 1000Base-T

Debug Interface

1 × 1000Base-T
1 × mini USB
1 × UART

Video Input

6 × GMSL2

Voice Input

4 × MIC

DMS Camera

1 × 2MP，FOV H54.4° V44°

IMS Camera

2 × 2MP，FOV H127.6° V70.2°

IP Code

IP5X

Technical Documentation

GSC2J31A 产品介绍
GSC2J31A Product Introduction
GSC2J31A 技术规格书
GSC2J31A Datasheet
GSC2J31A Hardware Design Diagram
GSC2J31A Hardware Design Schematic_SOM
GSC2J31A Hardware Design Schematic_MOT
GSC2J31A Hardware PCB Layout SOM TOP
GSC2J31A Hardware PCB Layout SOM BOTTOM
GSC2J31A Hardware PCB Layout MOT TOP
GSC2J31A Hardware PCB Layout MOT BOTTOM
GSC2J31A 关键物料清单
GSC2J31A 硬件用户手册
